• 12 drive bays

  • Max capacity 768TB

  • For SMB and large corporations with significant data growth

  • Preloaded with GuardianOS (GOS) 8

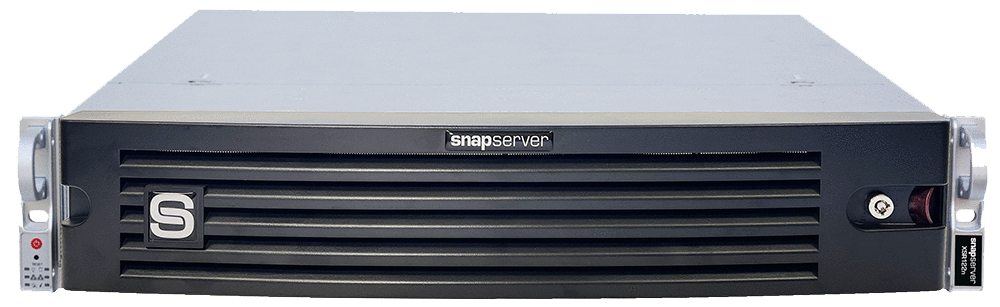

Introducing the

XSR122

The next generation of SnapServer appliances is here! The SnapServer XSR122 is a 2U enterprise-grade network attached storage appliance. Poised for SMB to large enterprises and organizations, this appliance is the storage you want in your datacenter. Add up to 3 expansion bay units to increase storage or use ECR/EDR to replicate your data between SnapServer for high redundancy.

Hardware Specifications

Positioning:

Operating System:

Supported Clients:

Network File Protocols:

Block Protocols:

Snapshots:

Microsoft AD Support:

VMware Support:

Management:

Form Factor:

CPU:

Memory:

RAID Levels:

Expansion Units:

Maximum Raw Capacity:

Ethernet Ports:

Power:

Power Supplies:

Dimensions (H"xW"xD")

Weight (lbs.)

Standard Warranty

Operating Temperatures:

Relative Humidity Range:

High scalability, SMB and large enterprises with significant data growth

GuardianOS 8.1

Windows, Linux/UNIX, MacOS, VMware

SMB, CIFS, NFS, AFP, HTTP, FTP

iSCSI

Included

Included

Ready

Wizard-based Installation, Volume Usage Statistics, Event Log, Email Notification, and SnapServer Manager

Rackmount 2u

Intel Xeon W-1250, 6-Core, 3.3Ghz

16GB DDR4 Standard (128GB Max)

DynamicRAID Single or Dual Parity / Traditional RAID 0, 1, 5, 6, 10, JBOD

Support up to 3 x 12-drive XSRX2 Expansion Units

768TB

2 x 1GbE RJ-45 and 2 x 10GbE RJ-45 ports

Rating: 650W, 100-240 VAC, 50-60 Hz

Consumption: 60W (steady state without drives)

Dual Hot-Swappable

3.5: x 17" x 25.5"

37lbs Without Drives

1-Year Bronze, Advance Parts Replacement with 7x4PST Phone Support

5°C - 35°C (41°F - 95°F)

8% - 90% (Non-condensing)

OPTION 1: BUNDLED SYSTEMS

48TB (8x6TB) Starter Bundle

SnapServer XSR122, 12-Bay Appliance Sold with 48TB RAW Storage (8x6TB drives), 1-Year Bronze Support Included

72TB (12x6TB) Essentials Bundle

SnapServer XSR122, 12-Bay Appliance Sold with 72TB RAW Storage (12x6TB drives), 1-Year Bronze Support Included

80TB (12x6TB) Essentials+ Bundle

SnapServer XSR122, 12-Bay Appliance Sold with 80TB RAW Storage (10x8TB drives), 1-Year Bronze Support Included

120TB (12x10TB) Teams Bundle

SnapServer XSR122, 12-Bay Appliance Sold with 120TB RAW Storage (12x10TB drives), 1-Year Bronze Support Included

144TB (12x12TB) Enterprise Bundle

SnapServer XSR122, 12-Bay Appliance Sold with 144TB RAW Storage (12x12TB drives), 1-Year Bronze Support Included

OPTION 2: CUSTOM SYSTEMS

1. Select any additional components you want for your SnapServer

Additional Options Include:

  • 16GB or 32GB RAM Upgrades (128G Max)

  • 10GbE SFP Network Interface Card

2. Determine Your Raid Level

Use this RAID calculator to determine drive quantity and sizes

3. Select certified SnapServer hard drives

Certified SnapServer Hard Drives come as:

  • 3TB SATA 7200RPM Enterprise Grade

  • 4TB SATA 7200RPM Enterprise Grade

  • 6TB SATA 7200RPM Enterprise Grade

  • 8TB SATA 7200RPM Enterprise Grade

  • 10TB SATA 7200RPM Enterprise Grade

  • 12TB SATA 7200RPM Enterprise Grade

  • 14TB SATA 7200RPM Enterprise Grade

  • 16TB SATA 7200RPM Enterprise Grade
